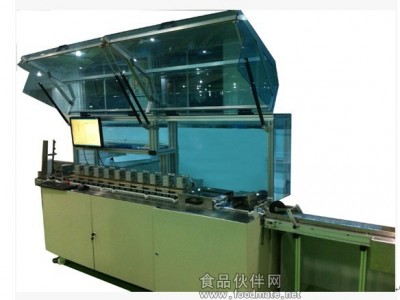

product functionRead the smart card chip data by 20 read write device,and read the print data(laser or ink) on the card face by camera, both compared with the database, if any data Inconformity, the card will be tick out. So the inspection system can find any bad card in many of the card easily.Ensure the smart card factory pass rate of . ◆     Check the contents of optional：*ICCID *IMSI _M *UIMID *SIDNID *A_KEY *CHU2 *PUK2*ADM *IMSI *ACCOLC，Targeted content detection, can be increased to maximum efficiency。◆     The highest throughput is up to 10000 cards per hour.technical parameter技术参数1.The speed of the conveyor belt：（Conveyor speed）3-30m/min2.Conveyor belt width：54—90mm3.Card size length：85-86mm           width：54-55mm           thickness： 0.7-0.8mm4.Productivity：1000Tickets / hour5.Total power： 1800w6.Power 220V 50/60HZ7.Use environment temperature ：0-50℃8.The use of relative humidity ：15-90%9.Shape size ：length×width×height：2600×650×1505mm10.Total weight ：about 500kg11.Air supply：0.4Mpa / Flux：8L/min
